Recipe family and production schedule define which data can be grouped.
Specialty chemical process-boundary case
Reactors, distillation, drying, chilled water and ventilation screened inside process-safety and product-quality boundaries.
This case maps process heat, cooling, ventilation, steam, compressed air and heat integration while keeping process design and safety review as hard boundaries.
- Separates steam, chilled water, cooling water, electricity and ventilation loads.
- Frames heat integration as a screen, not an automatic project saving.
- Requires recipe, contamination, safety and emissions constraints before investment use.
Process-safety boundary first
Chemical energy opportunities only matter after recipe, safety and emissions limits are clear.
The report first defines the process family and utility boundary, then screens heat integration, steam, chilled water, drying, ventilation and compressed air with conservative confidence labels.
Temperature profiles create both heat demand and cooling demand.
Reflux, condenser and reboiler operation drive steam and cooling loads.
Dryer exhaust and product moisture define heat recovery limits.
Exhaust flow can be safety-critical and energy-intensive.
Heat-source and heat-sink timing must respect contamination and safety boundaries.

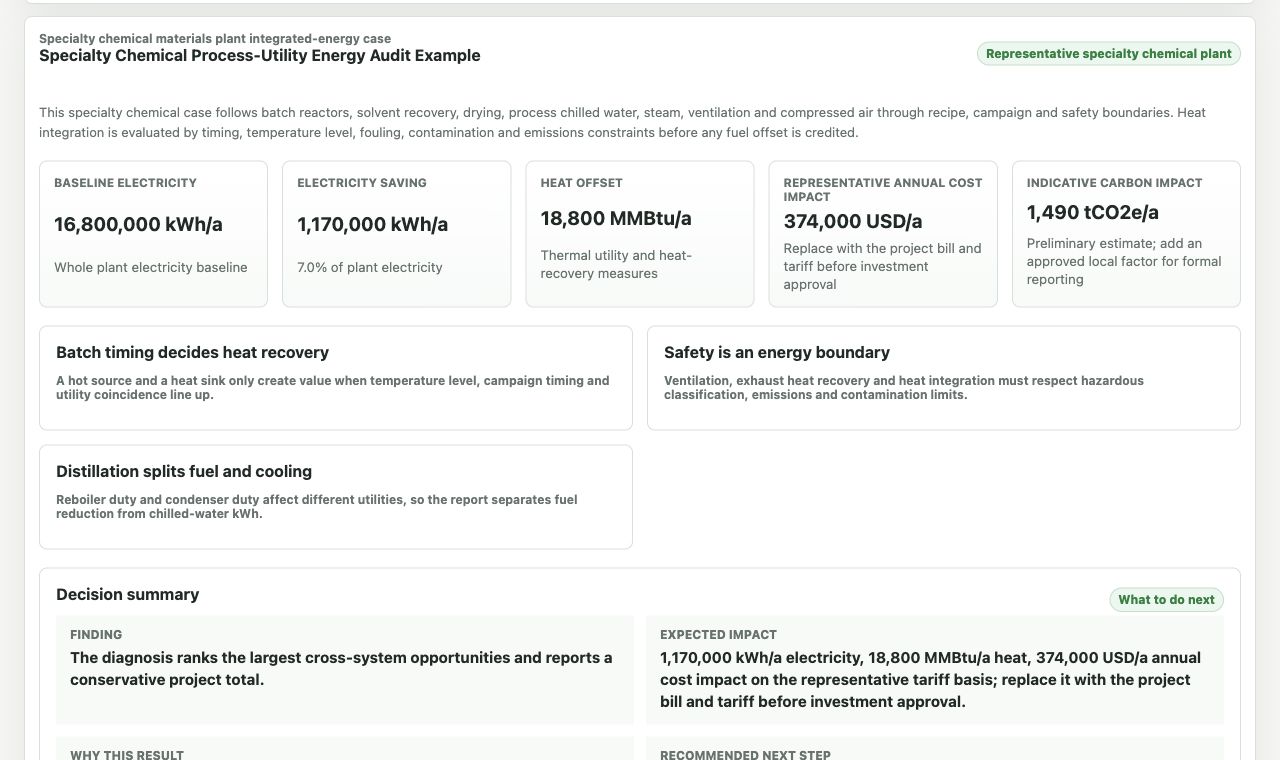

Diagnosis result structure
What the chemical workflow produces.
The report identifies the utility baseline, heat-integration candidates, data gaps and constraints before any project-level saving is treated as decision-ready.
Measure groupWhy it mattersEnergy boundaryData to improve confidence
Heat integration screen
Reactor, distillation and drying streams may have matched heat sources and sinks.
Steam/fuel and cooling reduction, conservatively capped.
Batch profile, temperatures, contamination limits and timing.
Distillation and condenser review
Reboiler and condenser loads can dominate utility cost.
Steam and cooling water/chilled-water use.
Duty, reflux, condenser temperature and product constraints.
Dryer or exhaust heat recovery
Dryer exhaust can be useful but often fouling or safety limited.
Thermal offset.
Exhaust temperature, humidity, solvent content and heat sink.
Ventilation schedule and utility review
Ventilation may be safety-critical and cannot be reduced generically.
Fan and conditioning energy.
Airflow, hazardous classification, emissions and operating schedule.
Quantification package
What must be measured before this becomes a decision-ready chemical report.
The report quantifies reactor heat/cool profiles, distillation duty, drying load, chilled water, ventilation and heat integration only after recipe families and safety boundaries are clear.
Calculation layerRequired site dataMethod outputConfidence and M&V
Batch and utility baseline
Recipe family, batch schedule, reactor temperature profile, steam/fuel use, chilled-water load and ventilation rate.
Thermal and cooling baseline by process family rather than by generic utility meter only.
Engineering estimate with batch logs; measured result with utility meters and temperature profiles.
Heat integration and drying
Stream temperatures, timing, contamination limits, dryer exhaust temperature/humidity and useful heat sinks.
Recoverable heat screen capped by timing, temperature match, fouling and safety constraints.
M&V uses heat-meter trend, batch records, exhaust trend and emissions/safety constraints.
Overlap control
Reactor recovery, distillation, dryer heat recovery and ventilation measures assigned before totals.
Fuel offset, chilled-water reduction and fan kWh are reported as separate energy boundaries.
Process hazard, environmental and product-quality reviews remain hard decision gates.
Reference-backed method
Public method references behind this specialty chemical case.
These references are used as method context for audit structure, system boundaries, evidence quality and M&V planning. They do not confirm site savings; the workflow still requires site data before investment use.
Reference familyHow it supports this case
ISO 50002 / ISO 50001
Audit boundary, evidence level, method basis and reporting structure.
DOE process-heating and steam guidance
Reactors, dryers, distillation heat, steam systems and useful heat-sink screening.
Process-safety / environmental review context
PHA, solvent/VOC, contamination, fouling and emissions constraints before heat integration.
Before running the workflow
What a chemical user can judge before running the workflow.
The public page now exposes the same industry-specific signals that appear in the detailed diagnosis report, so a visitor can judge relevance before entering site data.
Visible signalWhat it tells the user
Process signal
Recipe family, campaign changeover, fouling risk and solvent/VOC profile are named.
Energy signal
Reactor heat integration, distillation, dryer recovery, ventilation and chilled water are separated.
Boundary signal
PHA, contamination and emissions limits gate any heat-recovery economics.
Use this chemical case to structure a cautious energy opportunity screen.
Start with utility bills, process family, temperature profiles, ventilation and safety constraints before quantifying project value. Use the example diagnosis to inspect the method, or start a clean diagnosis with your own facility data.
